Key Features
- Includes bead pressing articulating arm to maintain the tire bead in the drop center while mounting or demounting the tire while also functioning as a helper arm

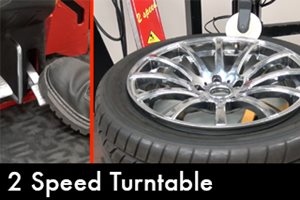

- Two-speed turntable offers increased speed and higher control
- Adjustable bead breaker
- Built-in table inflator with jets in the jaws
- Vertical column with incorporated air tank
- Turntable with two pneumatic cylinders to safely clamp any type of wheel
- Optional upgrade kit is available to service wheels up to 30", making it perfect for custom, low profile wheels

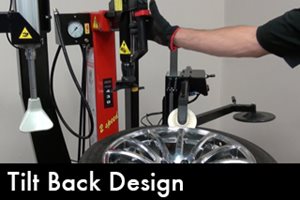

- Designed for large alloy wheels and low profile tires and provides
additional rigidity due to the tilt back design - Single action positioning duckhead allows for quick positioning on the wheel
- Pneumatic tilting arm support column with high torsion rigidity can be tilted in any working position
- Upgradeable powered roller disc with multiple uses such as top bead loosening and mounting. Can be used to quickly service TPMS sensors without demounting the tire.
Specifications

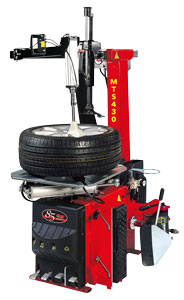

Myers #51314
- Electric/Air: 110V 1Ph
- External clamping: 8" min - 26" max
- Max. tire dia.: 43"
- Max. wheel width: 14"
- Ship wt.: 681lbs.
Market:
Medium - High Volume Tire Dealer
Warranty:
2 years parts and labor. 10 year turntable transmission
|
|
 |
 |
